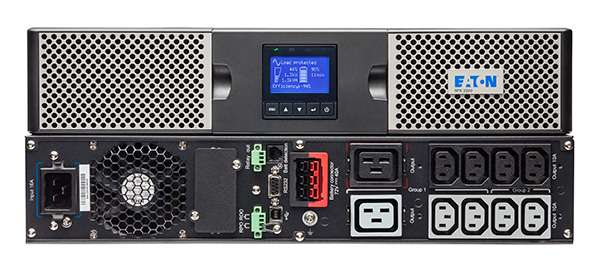

Eaton 9PX UPS (1000-3000W)

The Eaton 9PX UPS (1000-3000W) provides advanced protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection and being the first in its class to provide Unity power factor (VA=W).

Eaton 9PX UPS (1000-3000W) - Technical Specifications

Product Snapshot
Power Rating	1000-3000W
Voltage	200-240 V
Frequency	50/60 Hz
Topology	Double conversion
Configuration	Rack/Tower

UPS Models
Part Number	Power Rating(VA/Watts)	Input Plug	Output Receptacles
Eaton 9PX
9PX2000iRTAU	2000 / 1800	C14	(6) C13, (2) Aust. 10A
9PX2200IRT3U	2200 / 2200	C20	(8) C13, (2) C19
9PX3000IRT3U	3000 / 3000	C20	(8) C13, (2) C19
Eaton 9PX UPS RT2U
9PX1000IRT2U	1000 / 1000	C14	(8) C13
9PX1500IRT2U	1500 / 1500	C14	(8) C13
9PX2200IRT2U	2200 / 2200	C20	(8) C13, (2) C19
9PX3000IRT2U	3000 / 3000	C20	(8) C13, (2) C19

Eaton 9PX UPS (1000-3000W) - Features

• 9PX is the first UPS in its class to provide Unity power factor (VA=W).
• Energy Star qualified, the 9PX provides the highest efficiency level to reduce energy and cooling costs.
• Double conversion topology. The Eaton 9PX constantly monitors power conditions and regulates voltage and frequency.
• Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
• The graphical LCD display provides clear information on the UPS’s status and measurements on a single screen
• 9PX can meter energy consumption right down to the managed outlet groups.
• 9PX 2200 & 3000 are available in RT2U format (optimised for rack mounting) or RT3U (for tower or short-depth racks), pedestal and rail kits are included with all models.
• A maintenance bypass is also available for easy replacement of the UPS
